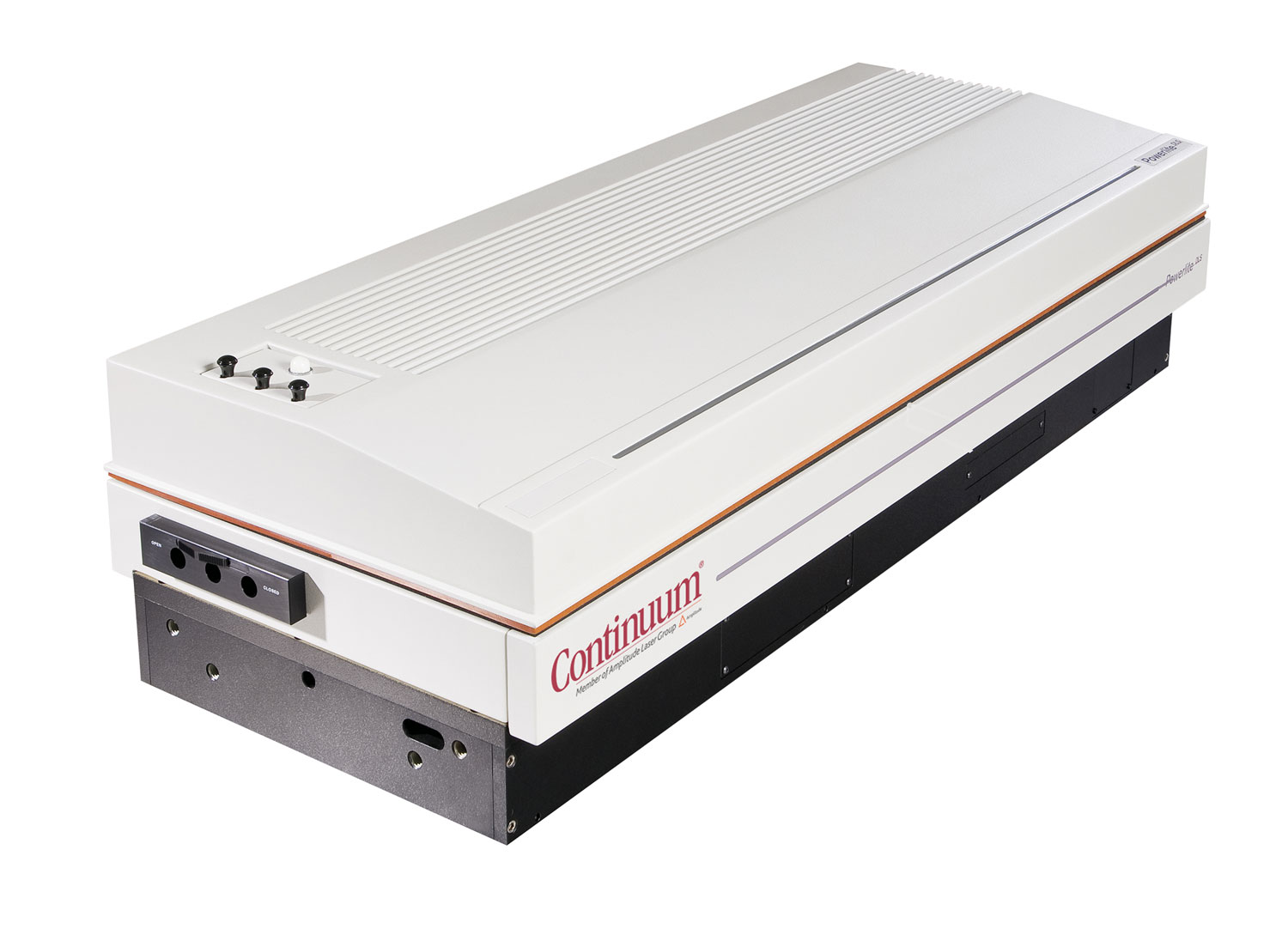

The Powerlite Nd:YAG lasers from amplitude are always used when high pulse energies are required at higher harmonics, be it for pumping Ti:Sapphire amplifier systems or for pumping tunable OPOs and dye lasers. Excellent beam quality is essential for these applications, as well as good pulse-to-pulse stability. Here the Powerlite lasers have earned a good reputation over the years.
The basis is the oscillator of a Surelite Nd:YAG laser. In the Powerlite, an amplifier is connected downstream which, depending on the requirements and model, is equipped with an 8, 9 or 12 mm amplifier rod
Here, too, the optional harmonics 532nm, 355nm and 266nm, starting from the fundamental wave at 1064nm, can also be offered motorized with automatic PC control via an intuitive graphic interface GUI.
More options:
- Injection seeding for narrow-band operation with a linewidth of 0.005 cm-1
- HEO configuration for optimized efficiency in frequency doubling SHG to 532nm.
- Powerlite DLS Plus with 2500 mJ at 532 nm
- 800mJ at 355nm
